Description

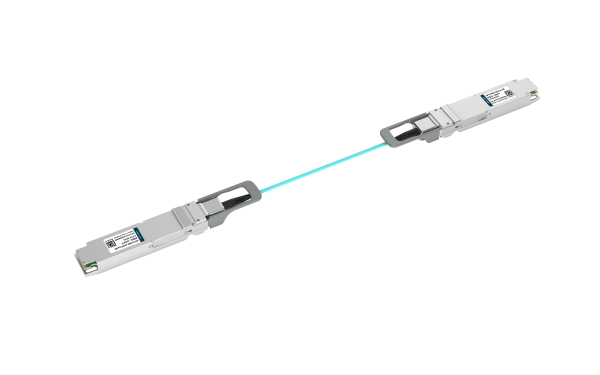

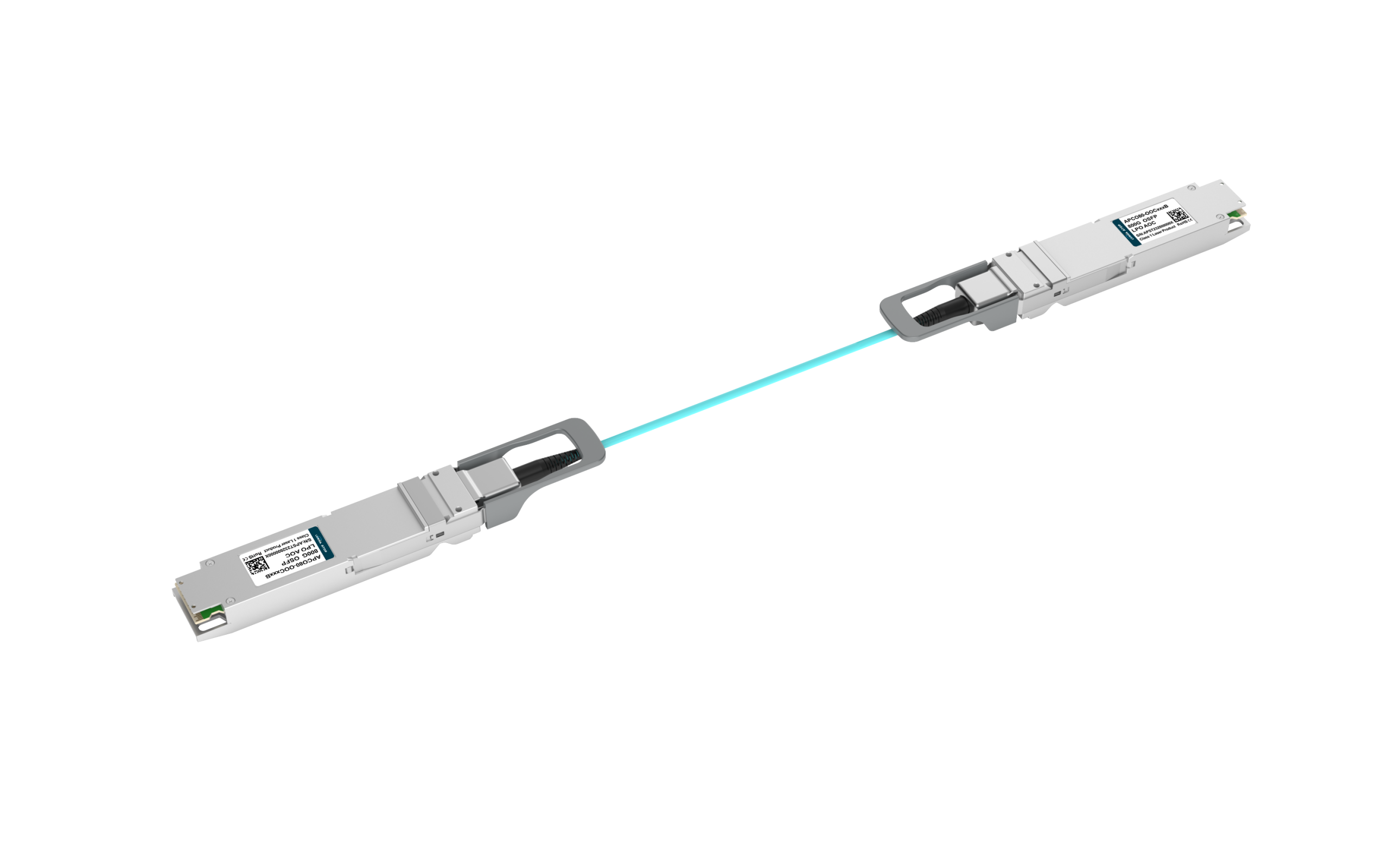

The ATOP 800G OSFP LPO AOC is a high-quality linear drive pluggable optical cable designed for utilization in 800 Gigabit Ethernet links over 30 meters. This optical cable is engineered without DSP chips, resulting in reduced power consumption and cost. Each AOC module features 8 independent electrical input/output channels, operating at 106.25 Gbps per channel. Each AOC module is composed of two transmitter/receiver units. The electrical interface of the transceiver complies with the 800GAUI-8 interface and it is also compliant with OSFP MSA. It is suitable for deployment in various network applications, including Internet protocol switches and servers.

Product Features

• Package: OSFP to OSFP
• Data Rate: 800G
• Wavelength: N/A
• Component: VCSEL/PIN
• Output Power: N/A
• Rec. Sens: N/A
• Connector: OSFP
• Case Temp.: C
• Reach: 1~50m(OM4/OM5)
• Multi-rate: N

Application

• 800G Ethernet
• Data Center Switch
