Description

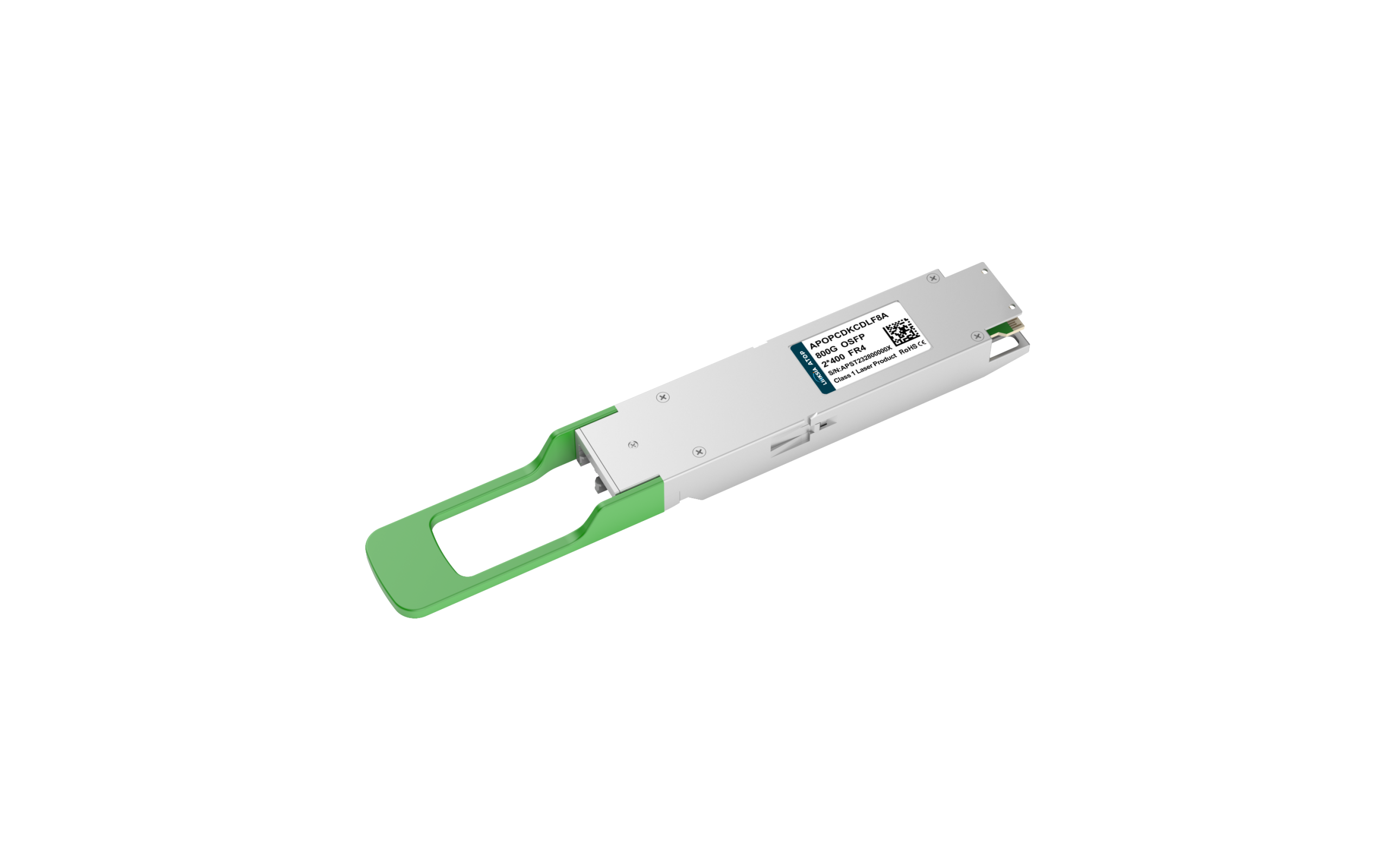

The ATOP OSFP 2x400G FR4 transceiver is a high-quality optical transceiver designed for utilization in 800 Gigabit Ethernet links over 2 km of single-mode fiber. The transceiver features 8 independent electrical input/output channels, operating at speeds of up to 106.25 Gbps per channel. This transceiver is composed of two transmitter/receiver units, with each unit functioning across a set of 4 wavelengths on the ITU G.694.2 CWDM grid near 1300 nm.

Product Features

• Package: OSFP
• Data Rate: 800G
• Wavelength: 1264.5nm~1337.5nm
• Component: EML+PIN
• Output Power: -3.2~+4dBm
• Rec. Sens: -4.6dBm
• Connector: MPO
• Case Temp.: C
• Reach: 100m
• Multi-rate: N

Application

• 800G Ethernet
• Data Center Switch
• Data Center Interconnect
