Description

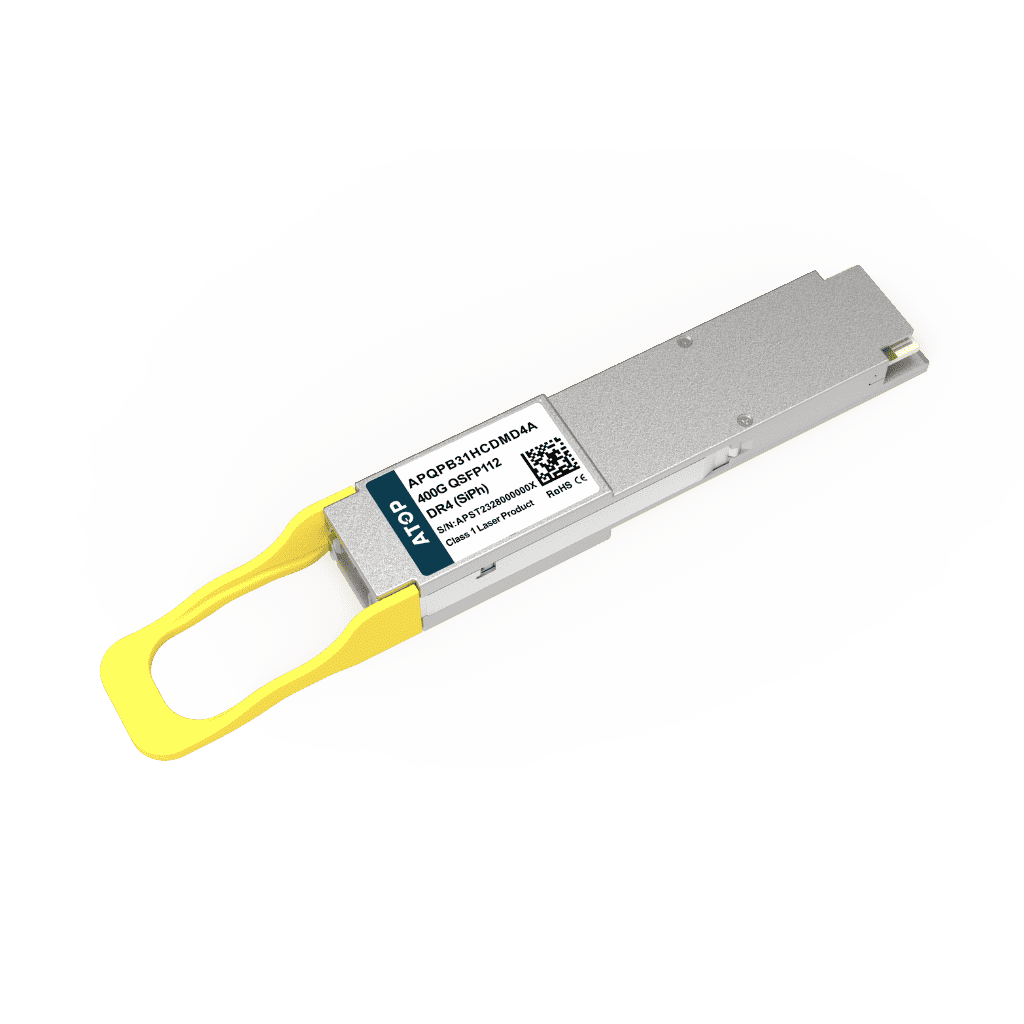

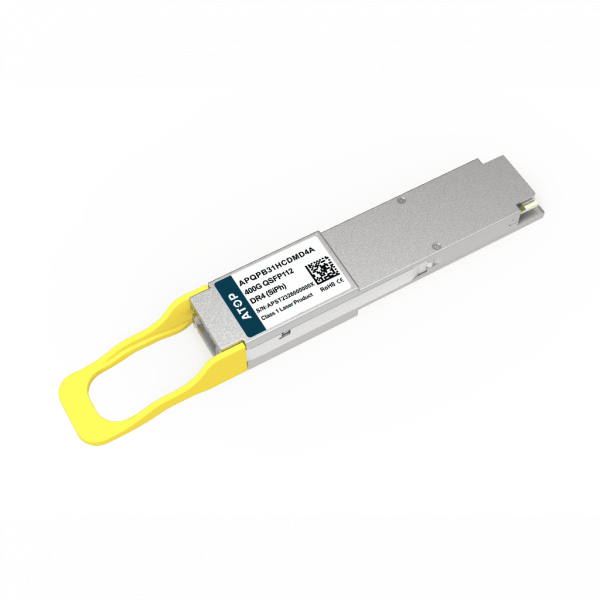

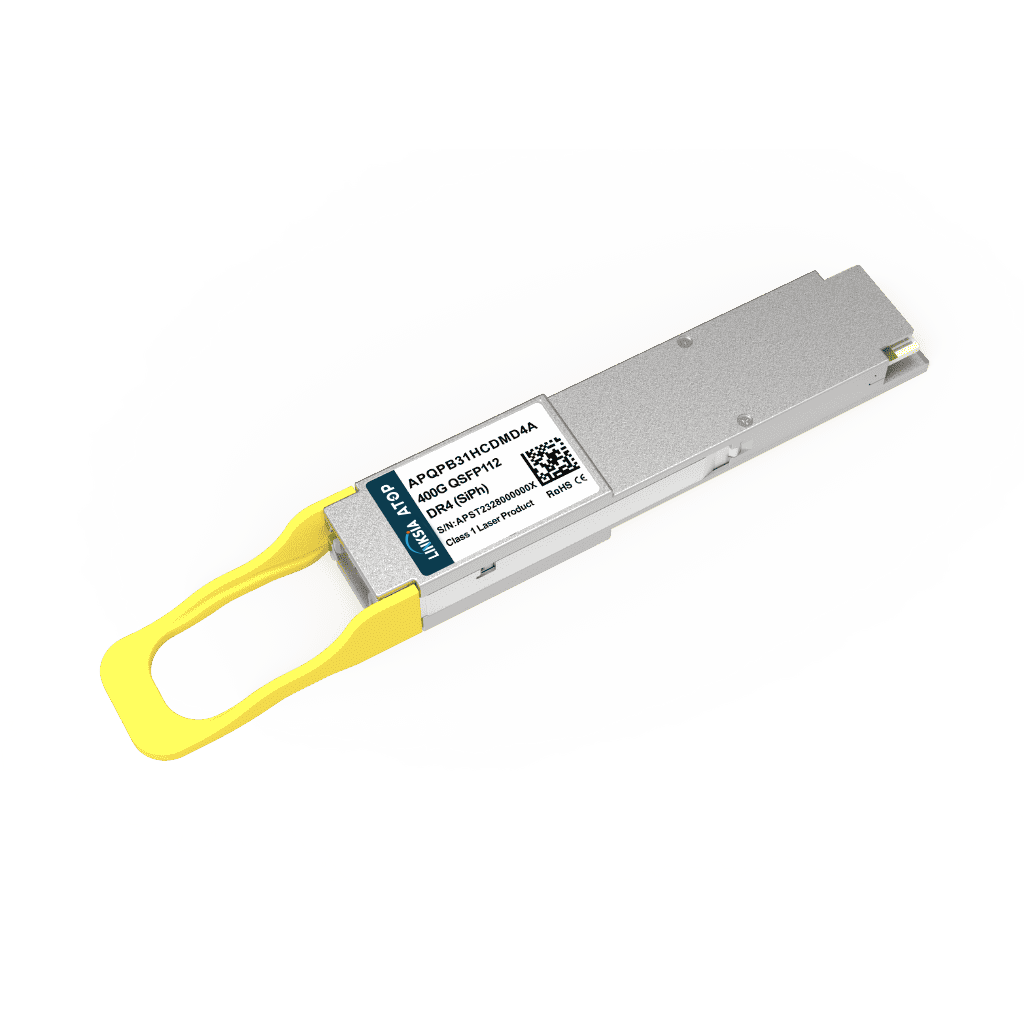

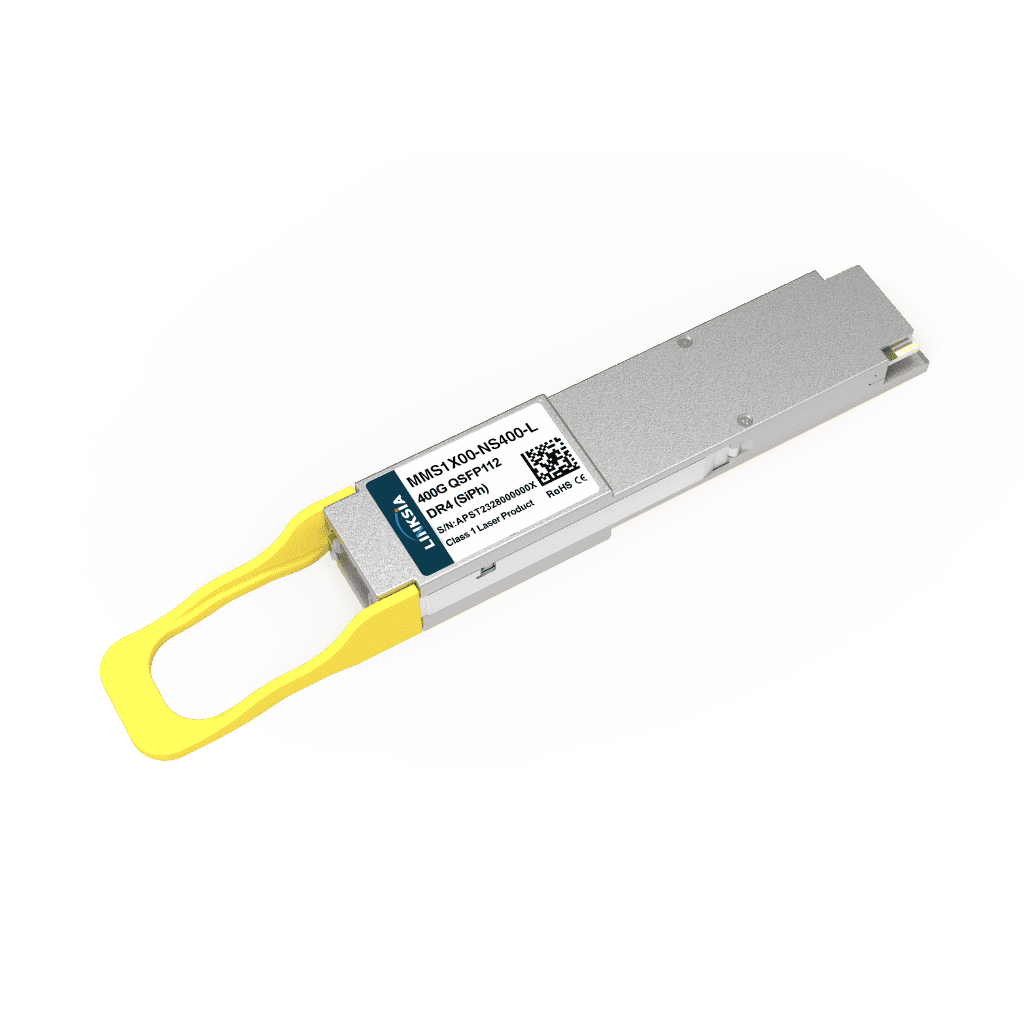

The 400G QSFP112 DR4 SiPh optical transceiver, built on advanced Silicon Photonics (SiPh) with integrated DSP technology,
is designed for next-generation 400 Gigabit Ethernet links over single-mode fiber.
It supports transmission distances of up to 500 meters and operates with four parallel electrical input/output lanes,
each running at 106.25 Gbps. Housed in a compact QSFP112 form factor, this transceiver provides a highly reliable,
low-power, and cost-effective solution for data center and cloud interconnects.
Its electrical interface complies with the 400GAUI-4 standard defined by IEEE 802.3ck.

Product Features

• Package: QSFP112
• Data Rate: 400G (4×106.25G lanes)
• Wavelength: 1310 nm
• Technology: Silicon Photonics (SiPh) with integrated DSP
• Connector: Duplex LC
• Reach: Up to 500m over SMF
• Fiber Type: Single-Mode Fiber (SMF)
• Channel Count: 4 lanes
• Standards Compliance: IEEE 802.3ck, 400GAUI-4
• Operating Temperature: 0°C to 70°C

Application

• 400G Ethernet
• Data Center Switch-to-Switch Links
• Cloud and Hyperscale Deployments
• High-Performance Computing (HPC)
• AI/ML Cluster Interconnects

Request Datasheet
