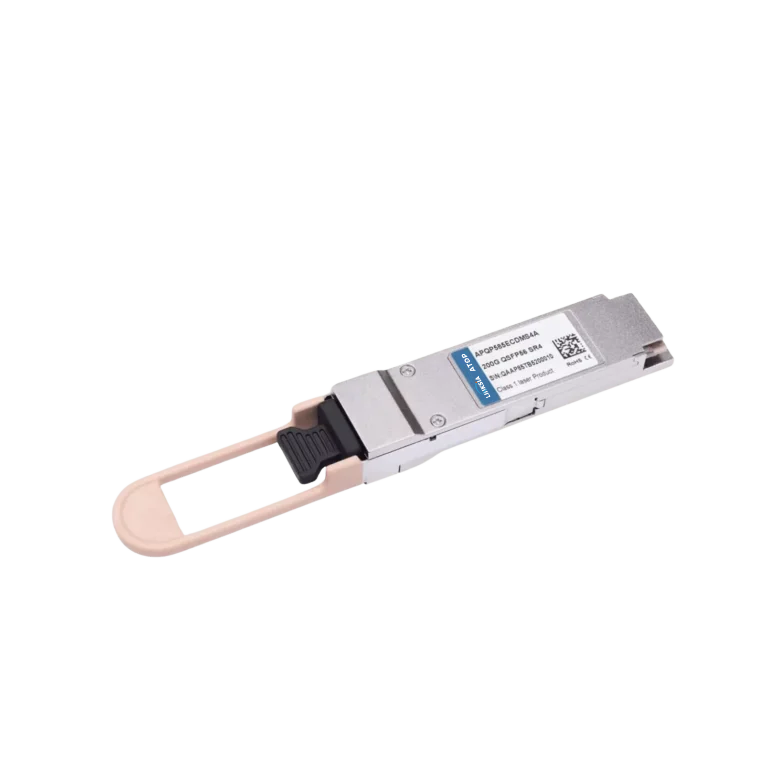

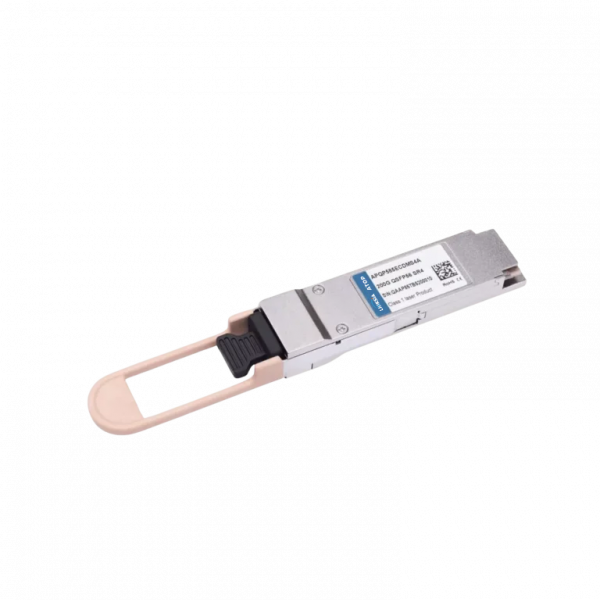

200G QSFP56 SR4 850nm
200G QSFP56 SR4
Description
ATOP’s 200G QSFP56 SR4 transceiver is an integrated module with micro-optic and semiconductor components,
facilitating optical-electrical and electrical-optical conversions. Designed as a four-channel, pluggable, parallel QSFP56 transceiver
for 200Gbps fiber communication, each channel can operate at 53Gbps up to 100m on OM4 fiber with an operating wavelength of 850nm.
The optical interface uses a 12-fiber MTP (MPO) connector, and the electrical interface employs a 38-contact edge-type connector.
This 200G SR4 module complies with the 200GBASE-SR4 standard of IEEE 802.3cd, providing reliable, long-life, high-performance,
and consistent service.
Product Features
- Package: QSFP56
- Data Rate: 200G (4×53Gbps lanes, PAM4)
- Wavelength: 850 nm
- Connector: MPO-12 (MTP)
- Reach: Up to 100m (OM4 MMF), 70m (OM3 MMF)
- Fiber Type: Multimode Fiber (MMF)
- Channel Count: 4 lanes
- Standards Compliance: IEEE 802.3cd, 200GBASE-SR4
- Operating Temperature: 0°C to 70°C
Application
- 200G Ethernet Links
- Data Center Switch-to-Switch Interconnects
- High-Performance Computing (HPC) Clusters
- AI/ML and Cloud Infrastructure
- Short-Reach Data Center Networking
