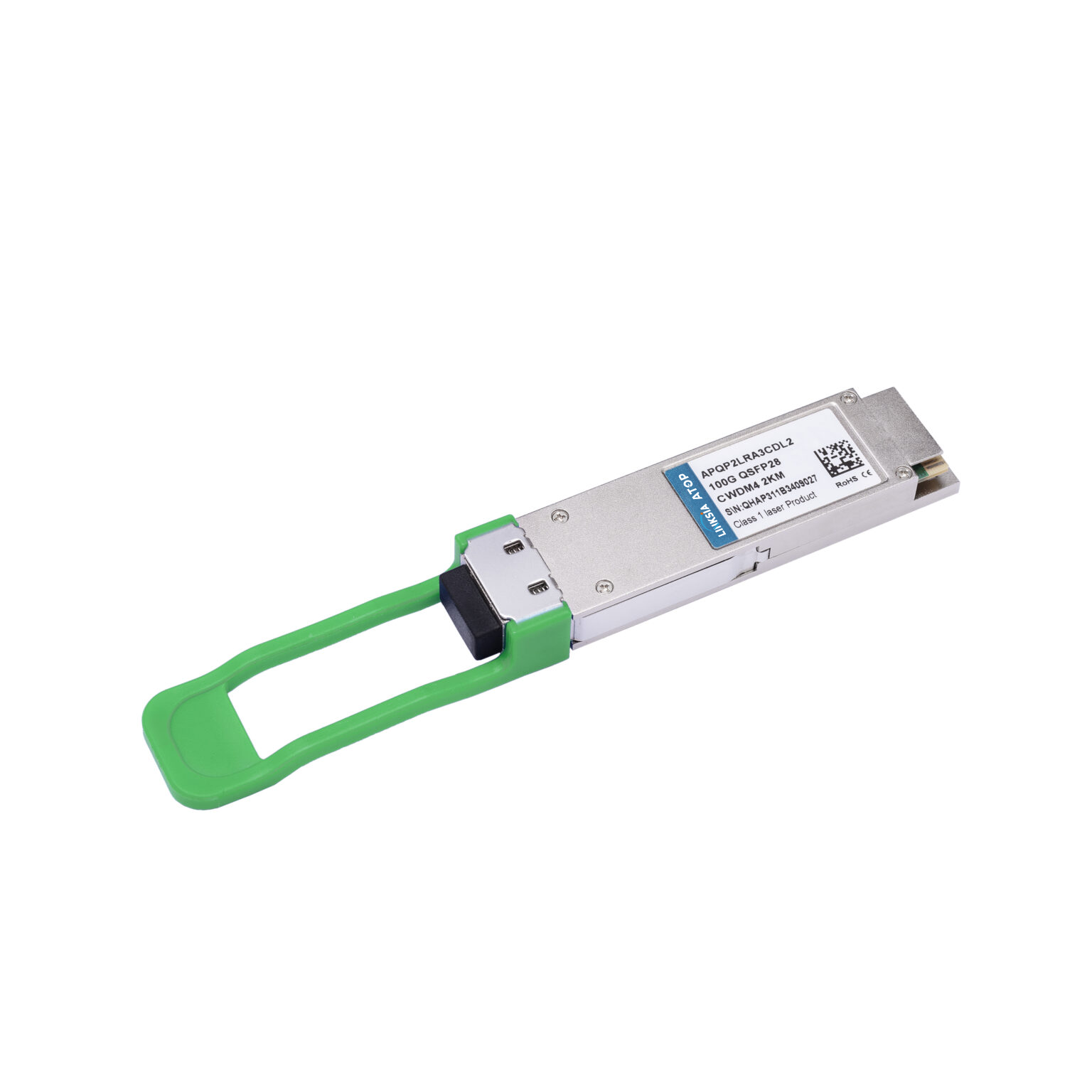

100G BASE-CWDM4 QSFP28 1271nm~1331nm 2km Transceiver
Description
ATOP 100G QSFP28 CWDM4 transceiver is a 100G QSFP CWDM transceiver designed for use in 100 Gigabit Ethernet and Data Center Interconnect. It adopts 4x25G electrical interface and has a maximum power consumption of 3.5W. This transceiver supports 103.125Gb/s aggregate bit rate, which can up to 2km transmission on single mode fiber without FEC. Its operating case temperature is from 0℃ to 70℃, and the single power supply is 3.3V.
Product Features
- Package: QSFP28
- Data Rate: 100G
- Wavelength: 1271nm~1331nm
- Component: DFB/PIN
- Output Power: -6.5~+2.5dBm
- Rec. Sens: -8.1dBm
- Connector: LC
- Case Temp.: C
- Reach: 2KM
- Multi-rate: Y
Application
- Data Center
